• Model NO.：D19
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Overall Size：1140*630*1020mm
• Fold Size：630*500*810mm
• Speed：0-6 Km,H
• Driving Range：25km
• Load Capacity：150kg
• Weight：36.9 Kg , 39.9 Kg
• Gradient：0-8 Degree
• Brush Motor：24V 200W *2 PCS
• Standard Battery：24V 6ah * 2 PCS
• Charging Time：6 H
• Seat Depth：400mm
• Seat Width：480mm
• Seat Height：530mm
• Front Wheel：8"
• Rear Wheel：12.5"
• Transport Package：Carton
• Specification：57*77*103cm pack
• Trademark：JBH
• Origin：China
• HS Code：8713900000
• Production Capacity：4000 Sets,Month

Basic Info.

Model NO. D19 Material Aluminium Alloy Type Electric Wheelchair Overall Size 1140*630*1020mm Fold Size 630*500*810mm Speed 0-6 Km/H Driving Range 25km Load Capacity 150kg Weight 36.9 Kg / 39.9 Kg Gradient 0-8 Degree Brush Motor 24V 200W *2 PCS Standard Battery 24V 6ah * 2 PCS Charging Time 6 H Seat Depth 400mm Seat Width 480mm Seat Height 530mm Front Wheel 8" Rear Wheel 12.5" Transport Package Carton Specification 57*77*103cm pack Trademark JBH Origin China HS Code 8713900000 Production Capacity 4000 Sets/Month

Product Description

Certified Medical Supply Power Wheelchair Folding Electric Wheel chair
 WHO WE ARE:We are enterprise with integration of R&D, manufacturing and sales, specialized in power wheelchair, electric scooter, knee walker, manual wheelchair and electric standing wheelchair.
Approved by ISO9001, ISO14001, IS013485 international quality systems. Products have acquired FDA, CE, marketing over 40 countries in the world.
"JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market.
We gained wide range recognition and trust from our customers. We will continue providing high quality products and service to contribute elders and handicapped an easier and better life!Welcome for inquiring/visiting! We are right here for you!

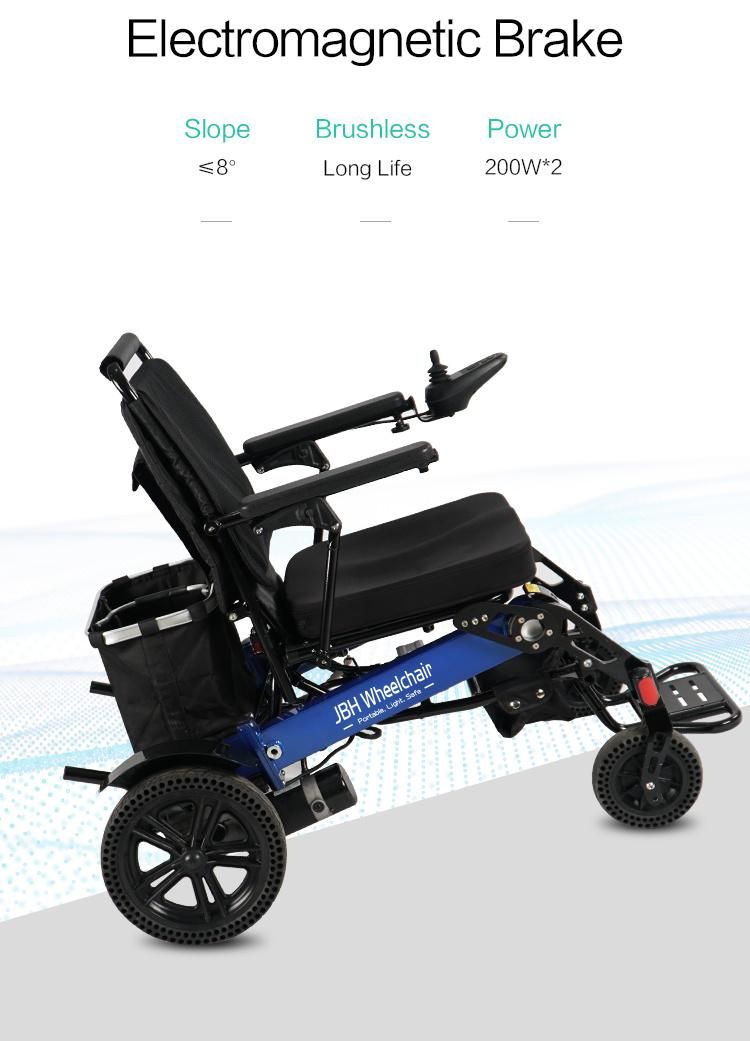

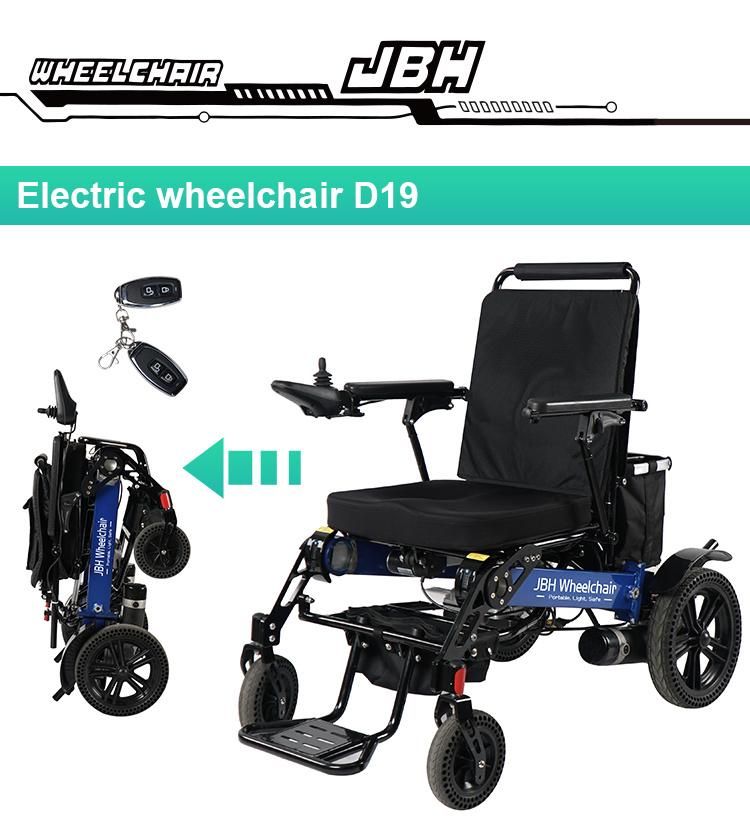

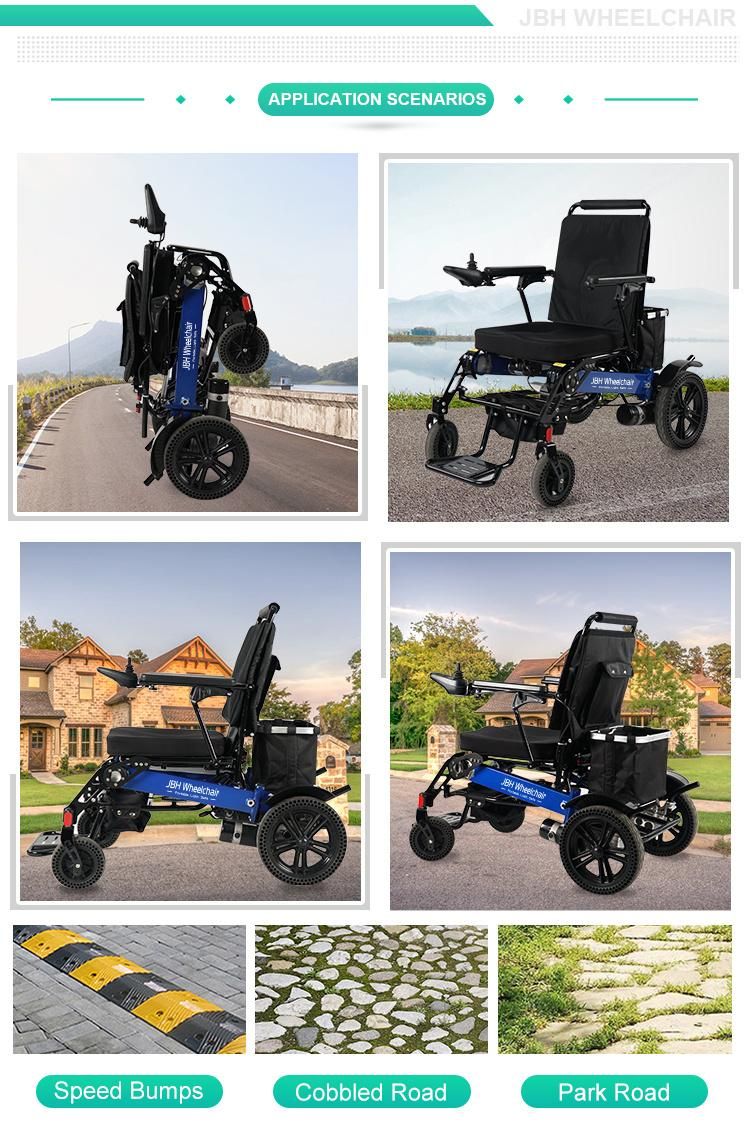

Folding Electric Wheelchair D19
Advantages:

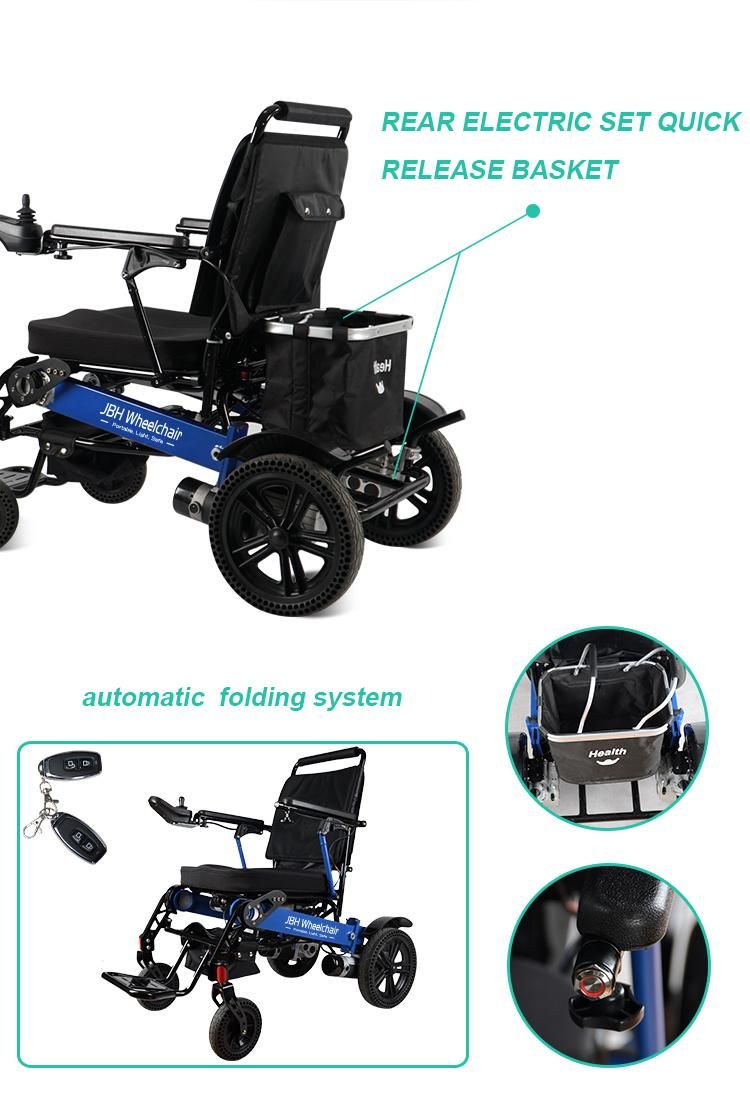

1. Automatic Electronic folding with remote.

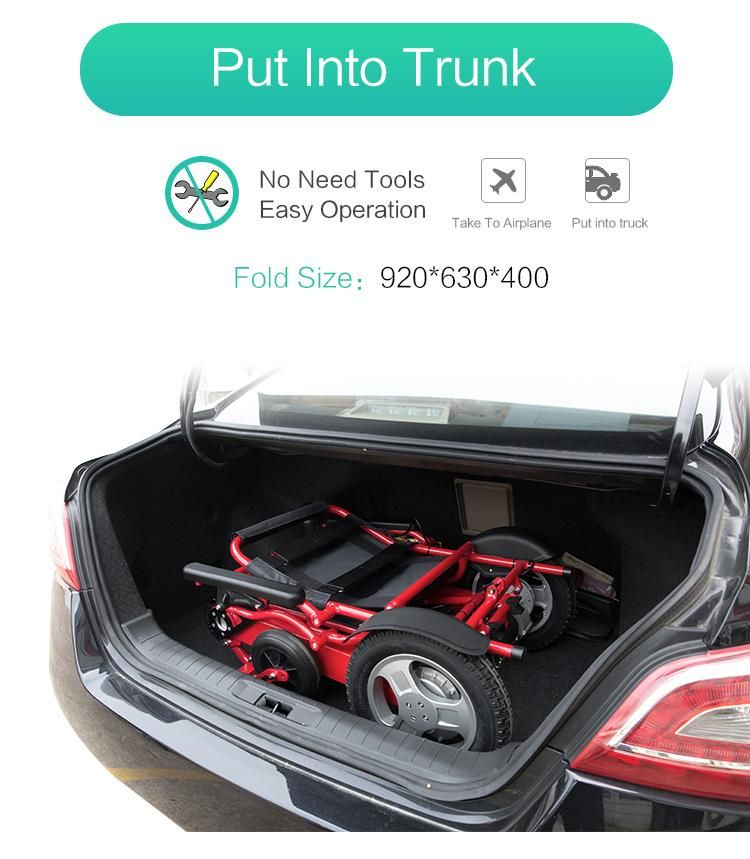

2. Motor can be quick removed from chair, can put into car junk.
3. Honeycomb holes solid PU front and back wheels, can reduce the shock.
4. Big back shopping crate.
5. Big size chair for fat user.



Model	D19 Certified Medical Supply Power Wheelchair Folding Electric Wheel chair
Unfold size	1140*630*1020mm
Fold size	810*630*500mm
Motor	Suoyang 24V/200W brush motor (can quick removed)
Push rod motor	24V 1000N
Controller	Dynamic controller
Seat width	480mm
Seat height	530mm
Seat depth	400mm
Distance from seat to pedal	440mm
Front tires	8" Honeycomb hole solid PU tires
Back rears	12" Honeycomb hole solid PU wheels
Max speed	6km/hour

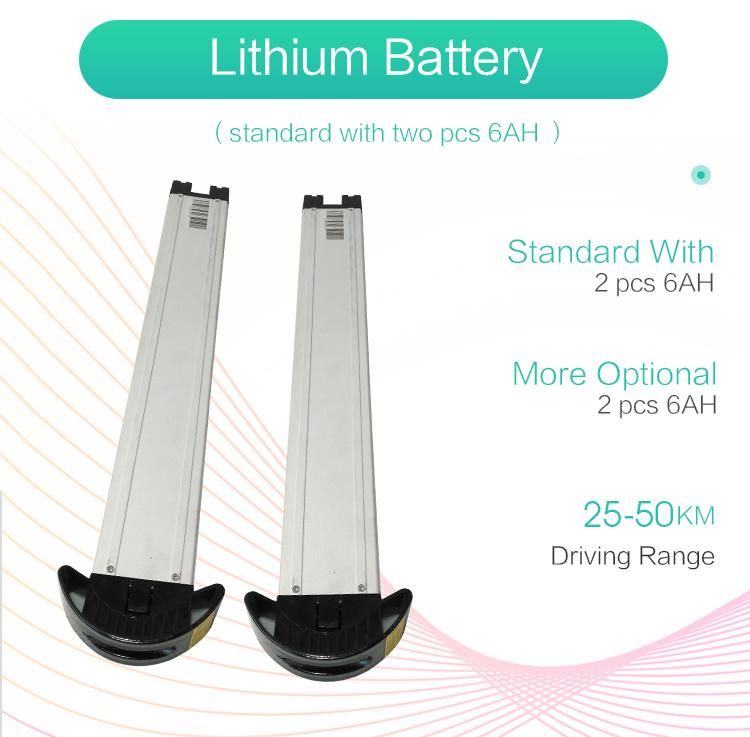

Battery	24V 6AH lithium battery *2pcs
Max load capacity	150kg
Driving range	20km

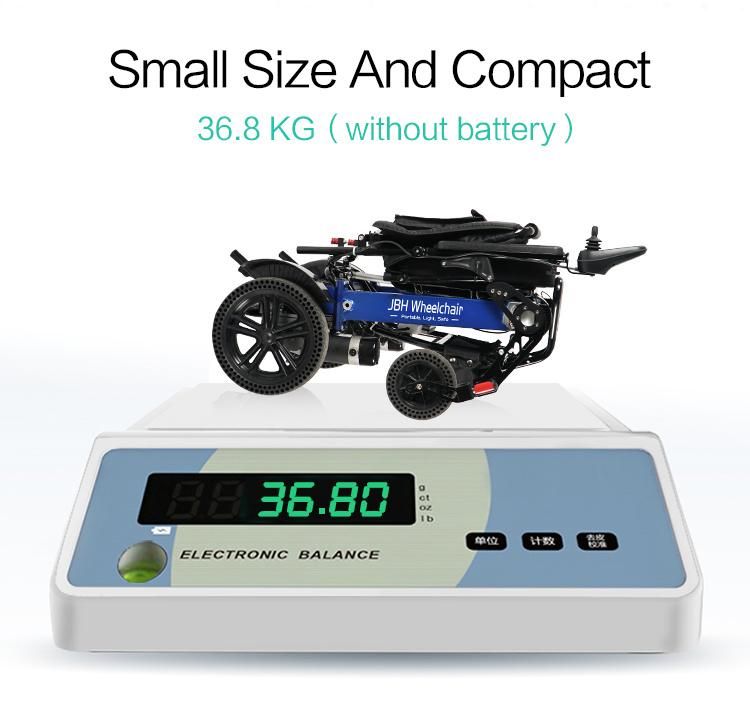

Chair weight without battery	36.9kg
Chair weight with battery	39.9kg

F.A.Q:
Q1: Can I Take The Plane? What Documentation Is Required?
        Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can consult the airline staff of your flight.

Q2: To Avoid Overcharging, Should I Need Protective Measures When Charging?
        No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.

Q3: Can I Use It In Different Countries?
        Yes, our products have an input voltage of 100-240V, which is suitable for most countries in the world. We can provide you with the right charger according to the type of plug used in your country.

Q4: Should I Need To Assemble After Unpacking?
        After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.

Q5: Is It Possible To Switch Manually By Electric Mode?
        Yes, you can adjust the red handle on the motor position to switch the manual electric mode.

Q6: Can The Controller Lever Switch Between Left And Right?
        Yes, the joystick can be switched left and right.

Q7: What Is The Production Process Of The Wheelchair?

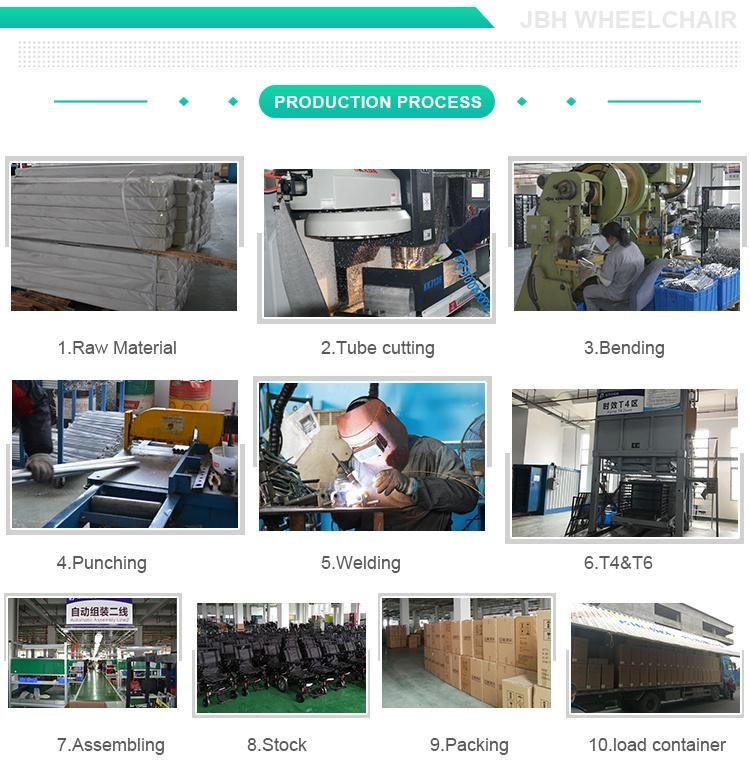

        Raw material cutting - processing forming - welding - heat treatment (increasing hardness) - baking paint - inspection - assembly - finished product - the packaging.

Q8: What Are The Optional Parts & Accessories?
        Battery, motor, tire, cup holder, controller, travel bag, rear control bracket, flashlight bracket, mobile phone  holder, headrest etc.

Q9: Can Product Quality Issues Be Returned?
        At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.

Q10: Are You Directly OEM And ODM?
         OEM can, we can customize your LOGO in a wheelchair. ODM is also acceptable, but the cost of opening the mold is relatively expensive, requires the customer to pay for it, and the cycle is longer. If the customer can accept it, our factory is no problem.
