• Model NO.：D10
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Model No.：D10
• Unfolded Size：940*650*975mm
• Folded Size：650*350*775mm
• Battery：Lithium Battery (6ah*2 PCS, DC 24V)
• Motor：250W * 2 Brushless Motors
• Load Capacity：120kg
• Endurance：20km
• Max Speed：6km,H
• Net Weight：23.5kg
• Transport Package：Standard Export Sea-Worthy Paper Carton
• Specification：750*450*880mm
• Trademark：JBH
• Origin：Jiangsu, China
• HS Code：8713900000
• Production Capacity：5000 Sets,Month

Overview MaterialAluminum AlloyUnfolded Dim(LxWxH)37.4x25.4x40.9inchFolded Dim(LxWxH)25.4x14.2x31.9inchN.W. (Without battery)56lbsN.W. (With battery)62lbsMax Speed3.7mphFront Tires8"x1.75" PU solidRear Tires12.5"x2.25" PU solidArmrests Distance21''more suitable for big size peopleRear Seat height19.3''Front Seat Height20''more comfortable for big size peopleSeat Width18.9''Seat Depth16.5''Pedal High From Ground3.2''GW78lbsPacking Carton(LxWxH)30x18.1x35.4inchDriving Range15.5milesLoading Capacity396lbsMotor250Wx2pcs blushless motorsControllerDC 24V 2A,100~220VAC,50~60HzLithiun Battery24V 6AHx2/4 pcsClimbing SlopeMax 12°Charging Time6 to 8 hrDrive ModeRear DriveBraking SystemElectromagnetic BrakeWarranty3 months for cushion and tires, 6 months for charger,
1 year for motor, battery and controller, 3 years for frame

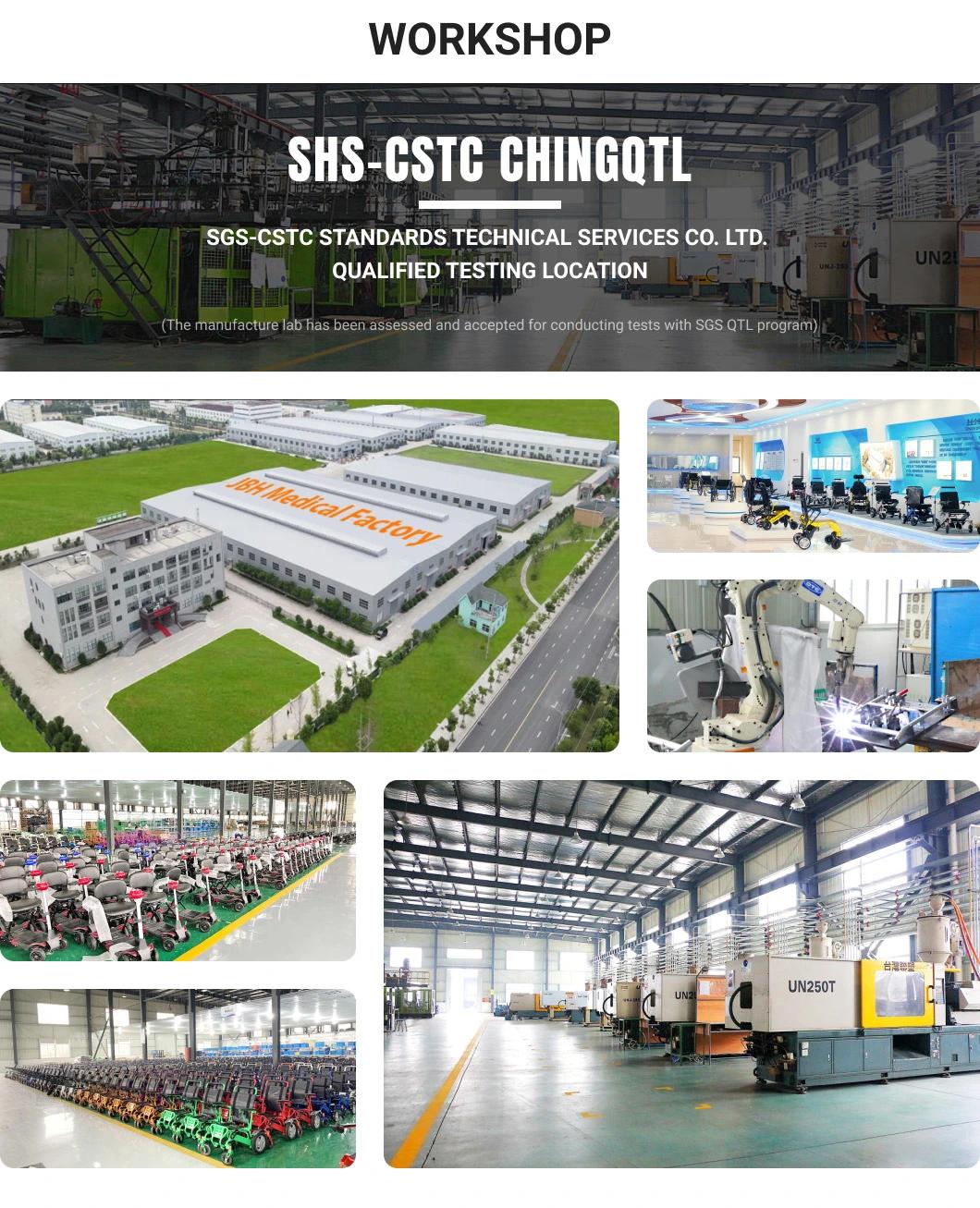

Company Profile



Hot Sale Products

FAQ

Q: What does the Wheelchair come with?
A: The Wheelchair comes with a piece of battery, a charger, a joystick,2 hexagon wrenches,A seat belt  and product manual.
Q: Do I need to take any precautions when charging the Wheelchair ?
A: 1,When charging, If the battery is in built-in wheelchair ,You need ensure that the Wheelchair is Powered OFF

    2,The wheelchair use replacement battery ,which can be carried anywhere to charge,Especially under harsh environmental
conditions outside ,You can take the battery directly to the room for charging. Without having to carry an entire wheelchair

Q: How about Warranty ?
A: First ,We guarantee product quality ,Strictly tested before shipment.

Second ,damage to accessories caused by non-human factors during the warranty period ,We will ship it for free

lithium battery & charger1 year warrantybrushless motor1 year warrantycontroller1 year warrantyAluminum alloy frame2 year warranty



Q: The way your factory cooperates
A: We warmly welcome distributors and end users

For distributors, we provide LOW MOQ ,best price ,privite lable ,drop shipping etc .

For end users, the price will not be lower than the dealer's , however ,group purchase discount .
