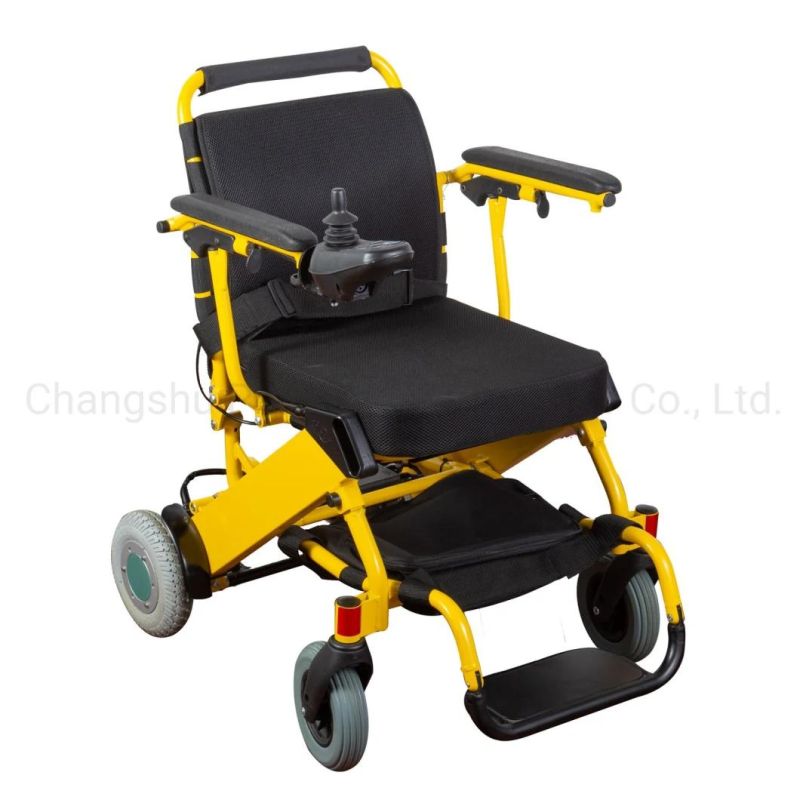

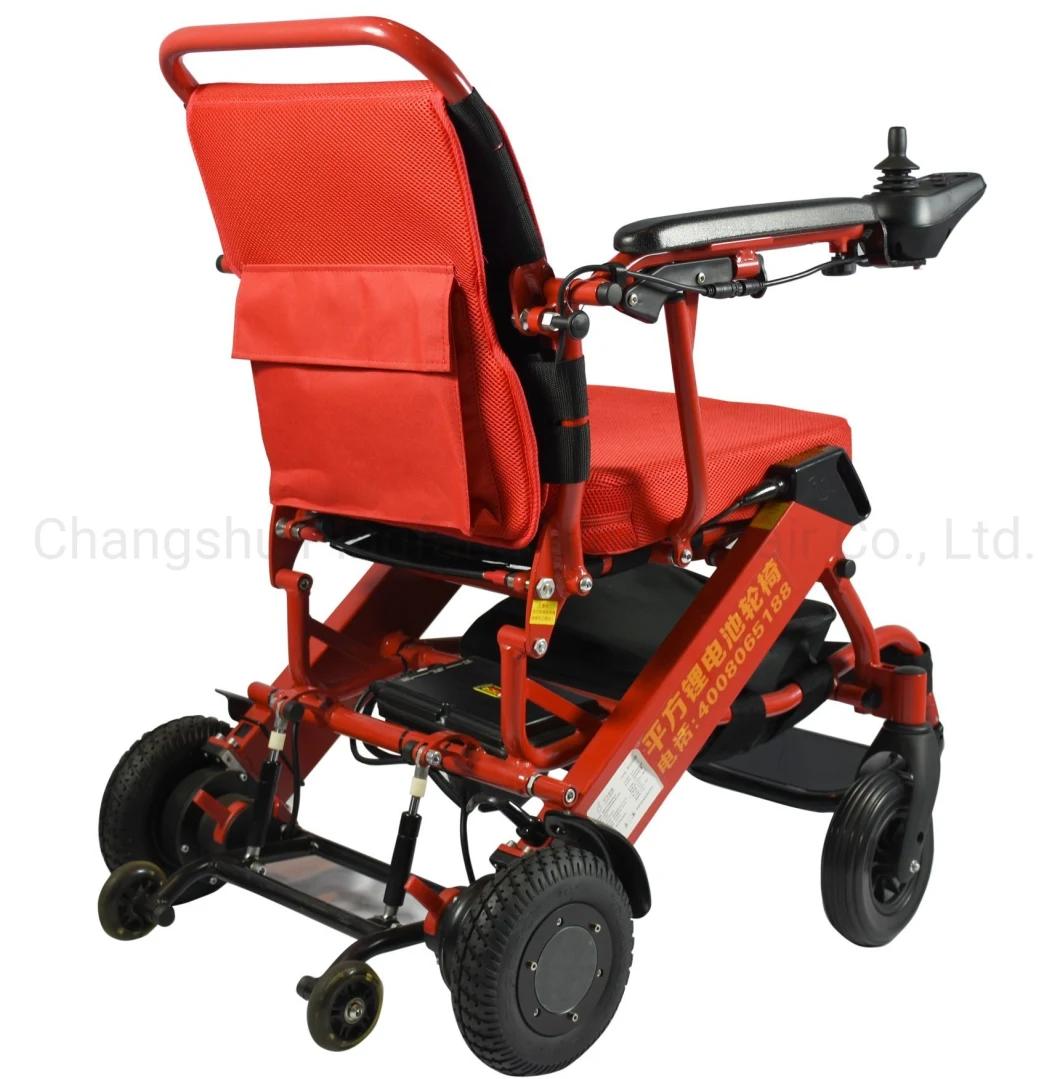

• Model NO.：DYN30F (D07F)
• Material：Aluminium Alloy
• Type：Electric Wheelchair
• Battery：Lithium Battery
• Motor：150W*2
• Motor Type：Blushless
• N.W：Frame 18.5 Kg
• Transport Package：CTN
• Specification：950mmX580mmX870mm
• Trademark：METTER2
• Origin：China
• HS Code：87139000
• Production Capacity：1000PCS,Month

Net Weight with 1 standard battery pack20.5kg (45 lbs)Max Speed6.5 km/hr (4 miles/hr)Maximum Seat Capacity100kg (220 lbs)Seat Width45cm (17.7") between armrestsSeat Depth42cm (16.5")Seat Height From Ground (Front)49cm (19.3")Seat Height From Ground (Back)47cm (18.5")Turning Radius75cm (29.5")Folded Size L X H X W30cm x 71cm x 60cm (11.8" X 28" X 23.6")Opened Size91cm x 88.5cm x 59cm (35.8" X 34.8" X 23.3")Packing Size35cm x 78cm x 64cm (13.8" X 30.7" X 25.2")Max Distance / Full Charge~15km with 1 battery (15% less in cold weather)

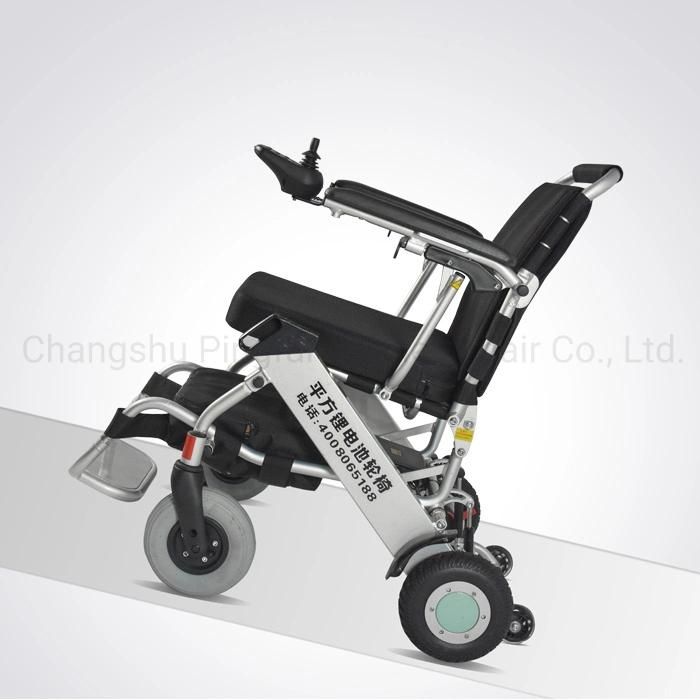

~30km with Optional 2nd battteryCharge Time (for 1 battery)4 hoursSlope Capability13˚Battery TypeSoft Pack Polymer Lithium Ion BatteryMotor TypeLatest Brushless MotorMotor Power150W x 2Front Wheel7"Rear Wheel8"Frame MaterialQuality Aluminium AlloyRear Tire TypeRigid PU tyreArmrestRaisableFootrestFoldableBackrestFoldable*Error and uncertainty in measurement
Our Service
1.Reply your inquiry in 24 working hours.
2.Customized design is available.OEM & ODM are welcomed.
3.Professional engineers & Exclusive and unique solution.
4.Well-trained staffs.
5.Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6.Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
7.Payment :TT

Advantage

1. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.

2. Foldable footrest - Convenient for Up and down the wheelchair.

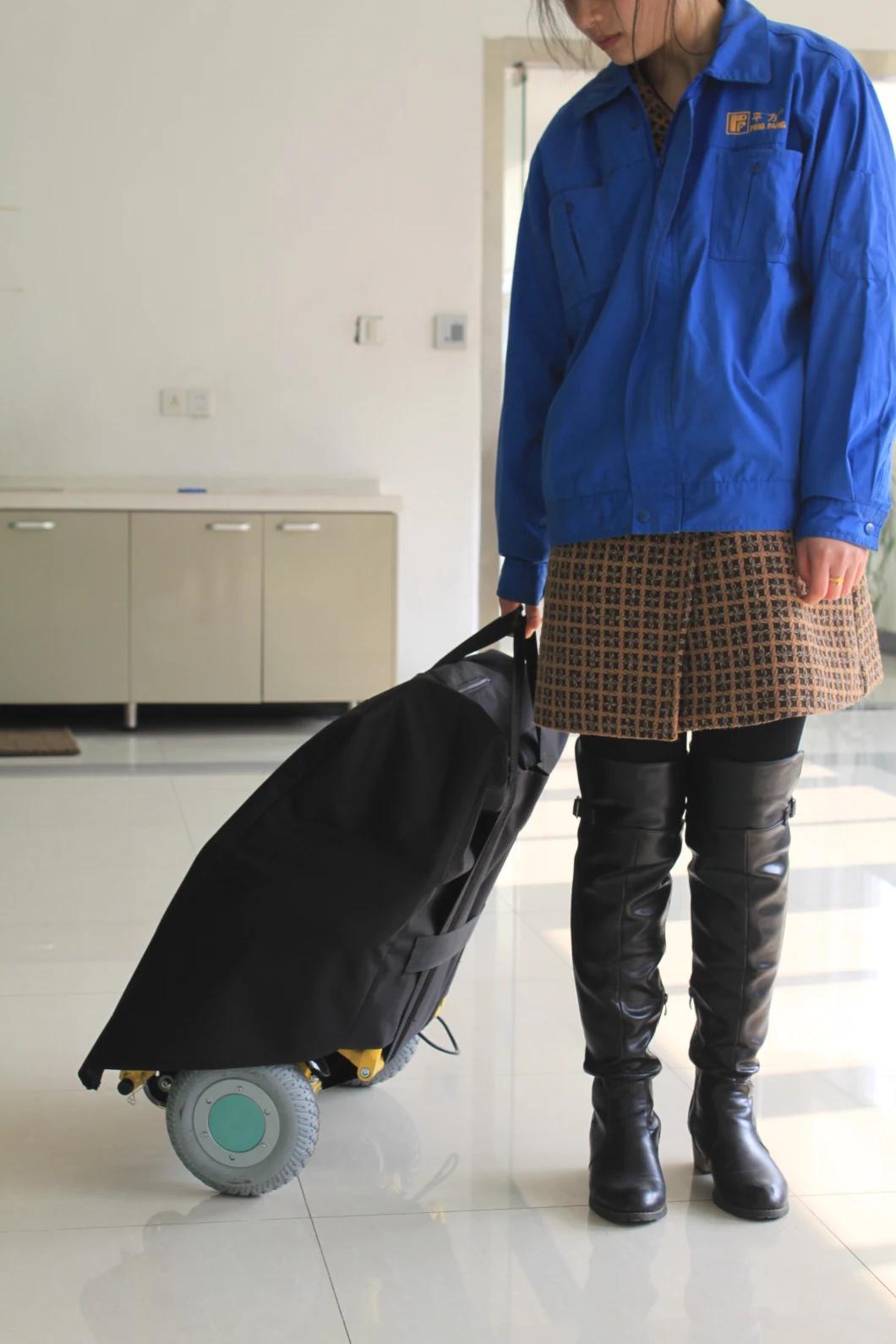

3. Foldable frame - Convenient for transportation and stock.

4. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.

5. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.

6. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.

7. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.

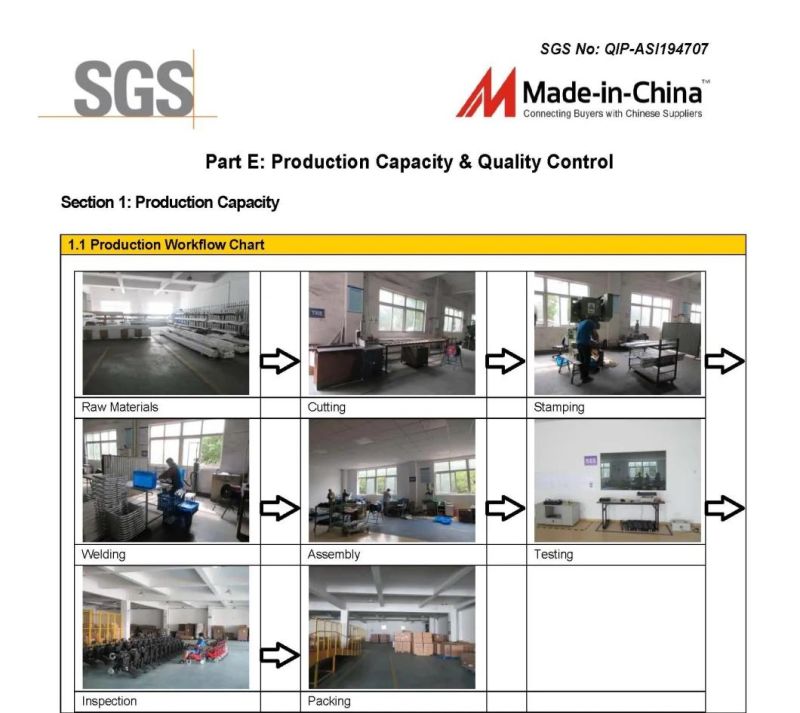

The Production Process



Patent



Wheelchair Show
